Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .

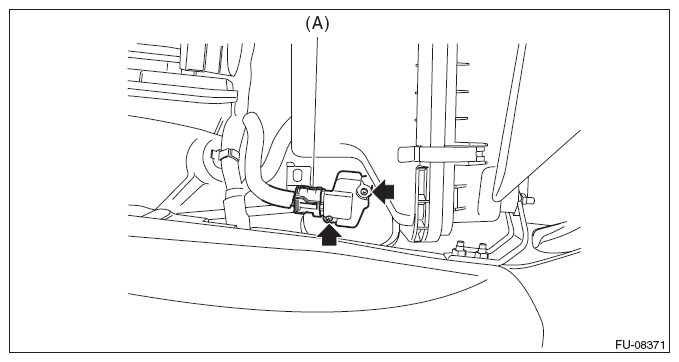

  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.
    G10266232Courtesy of SUBARU OF AMERICA, INC.
