Intake Side
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
- Remove the air intake duct. (RH side only) Refer to INTAKE (INDUCTION) (W/O STI)>AIR INTAKE DUCT>REMOVAL .

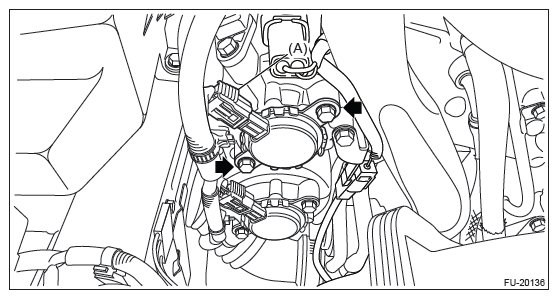

- Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
