LH Side

  1. Remove the battery. Refer to STARTING/CHARGING SYSTEMS(W/O STI)>BATTERY>REMOVAL .

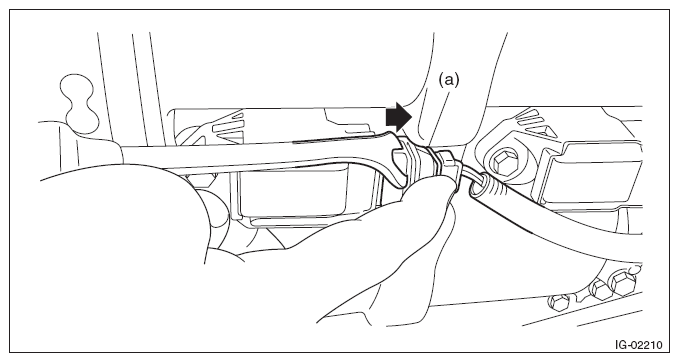

  2. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10267378Courtesy of SUBARU OF AMERICA, INC.

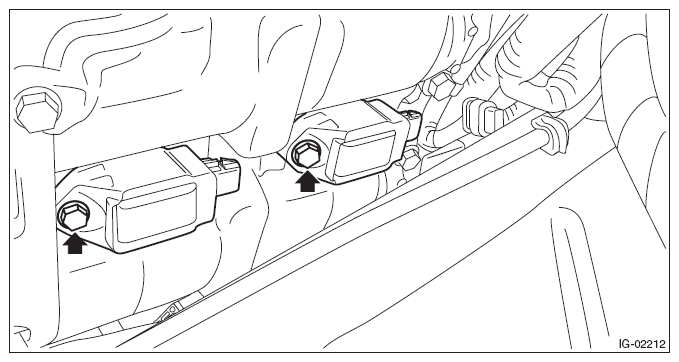

  3. Remove the ignition coil.
    G10267379Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
