Sunroof Assembly: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the motor assembly. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>SUNROOF MOTOR>REMOVAL
  2. Remove the shade assembly. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>SUNSHADE>REMOVAL

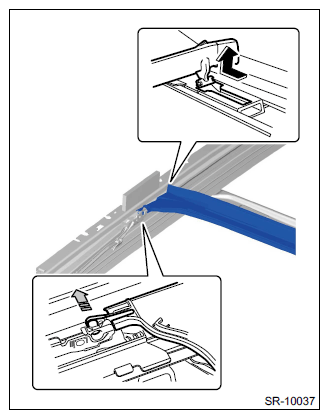

  3. Remove the drain plate.
    1. Release the claws on the front side.
    2. Slide the drain plate and remove it from the rail section.
      G11246424Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the cable assembly and the link drain.
    G14612891Courtesy of SUBARU OF AMERICA, INC.
