Brake Pedal: Assembly
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

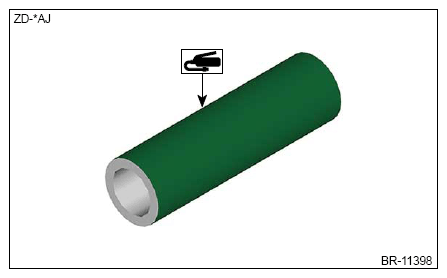

- Apply a thin coat of grease to the spacer.
Preparation items:
Grease: NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent
- Install the bushing, spacer, stopper and pedal pad to the pedal COMPL brake.
- Install the pedal COMPL brake to the bracket COMPL pedal.CAUTION:
While holding the bolt side, tighten the nut to the specified torque.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
