Master Cylinder: Assembly
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

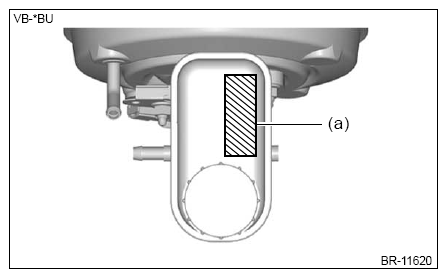

When replacing the oil reservoir COMPL, adhere the brake fluid caution label (a) to the position shown in the figure. (Except for electric brake booster model (for C0))
Preparation items:
Brake fluid caution label (part No. 25080GA010)
- Install the seal reservoir to the master cylinder assembly.
- Install the oil reservoir COMPL.
- Place the master cylinder assembly between aluminum plates and fix it on a vise.CAUTION:
Be careful not to tighten a vise excessively.

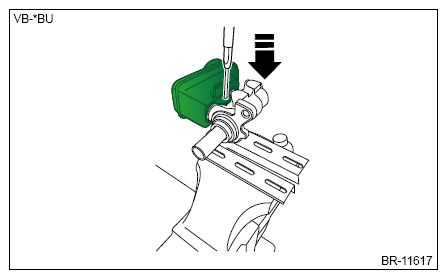

- Drive a new pin using a punch and a hammer to install the oil reservoir COMPL.
- Place the master cylinder assembly between aluminum plates and fix it on a vise.
