Engine Cooling System 2

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

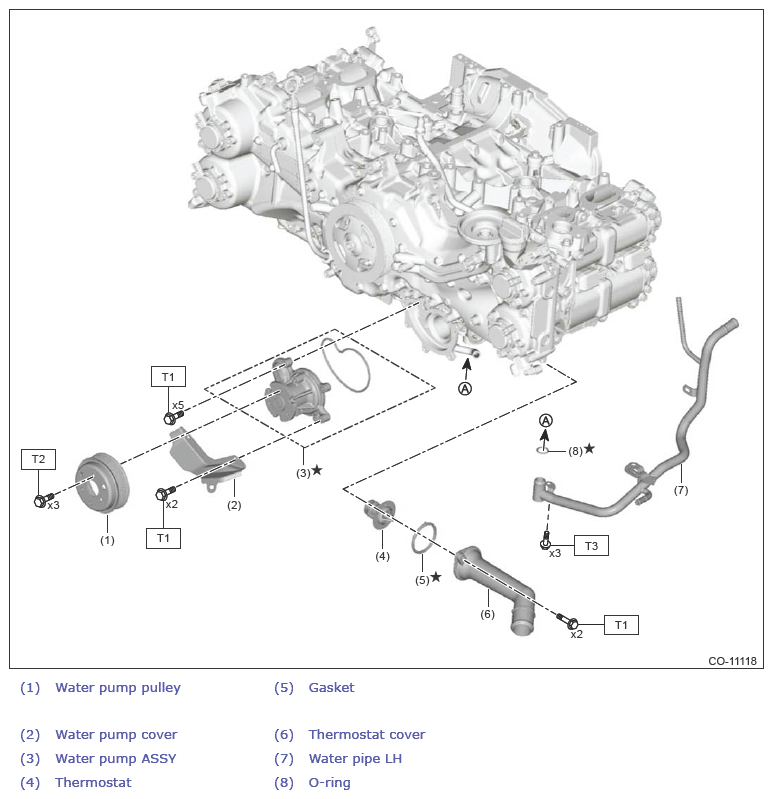

Fig 1: Engine Cooling System 2 Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14 (1.4, 10.3)

T3: Ref. to COOLING (H4DOTC)>WATER PIPE>INSTALLATION>WATER PIPE LH .
