Section 19 (Engine Cooling System): Radiator: Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

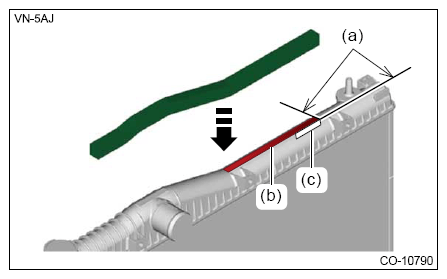

  1. Attach the radiator upper gasket.
    CAUTION:

    Always use a new radiator upper gasket.

    NOTE:
    • Align the part to the reference position (a) and adhere to the protruding portion (b).
    • Attach the part so that it does not overlap with the identification label (c).
    G14601419Courtesy of SUBARU OF AMERICA, INC.

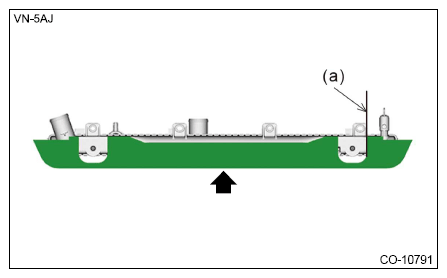

  2. Attach the radiator lower gasket.
    CAUTION:

    Always use a new radiator lower gasket.

    NOTE:

    Align the part to the reference position (a) and adhere it.

    G14601420Courtesy of SUBARU OF AMERICA, INC.

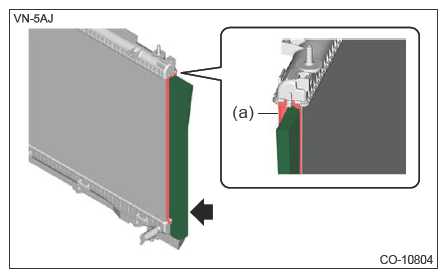

  3. Attach the radiator side gasket RH.
    CAUTION:

    Always use a new radiator side gasket RH.

    NOTE:

    Align the part to the front side portion of the reinforcement (a) and adhere it.

    G14601421Courtesy of SUBARU OF AMERICA, INC.

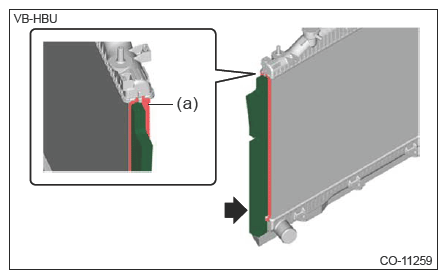

  4. Attach the radiator side gasket LH.
    CAUTION:

    Always use a new radiator side gasket LH.

    NOTE:

    Align the part to the front side portion of the reinforcement (a) and adhere it.

    G14601422Courtesy of SUBARU OF AMERICA, INC.

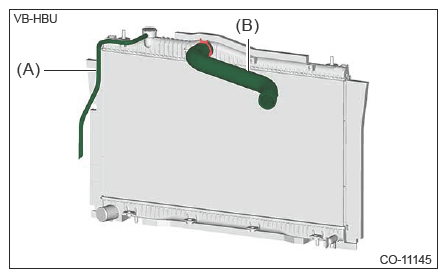

  5. Install the over flow hose (A) and radiator inlet hose (B).
    G14601417Courtesy of SUBARU OF AMERICA, INC.
  6. Install the radiator sub fan and fan motor. Ref. to COOLING (H4DOTC)>RADIATOR SUB FAN AND FAN MOTOR>INSTALLATION .
  7. Install the radiator main fan and fan motor. Ref. to COOLING (H4DOTC)>RADIATOR MAIN FAN AND FAN MOTOR>INSTALLATION .
