Section 19 (Engine Cooling System): Radiator: Disassembly
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the radiator main fan and fan motor. Ref. to COOLING (H4DOTC)>RADIATOR MAIN FAN AND FAN MOTOR>REMOVAL .
- Remove the radiator sub fan and fan motor. Ref. to COOLING (H4DOTC)>RADIATOR SUB FAN AND FAN MOTOR>REMOVAL .
- Remove the over flow hose (A) and radiator inlet hose (B).

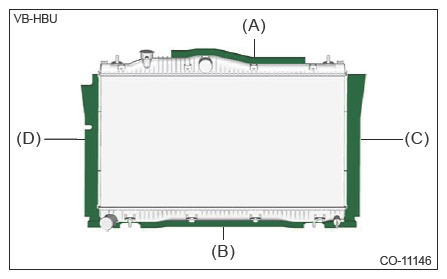

- Peel off the radiator upper gasket (A), radiator lower gasket (B), radiator side gasket RH (C), and radiator side gasket LH (D).NOTE:
This procedure is required only when the radiator upper gasket, radiator lower gasket, radiator side gasket RH, and radiator side gasket LH are to be replaced.
