Air Intake Boot: Installation
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

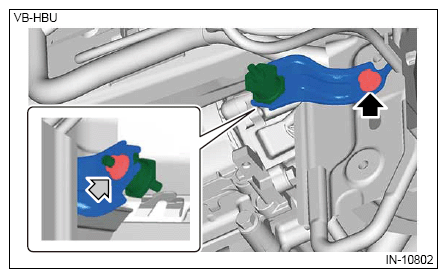

- Install the turbo duct bracket, and install the cushion to the turbo duct bracket.NOTE:
- Align protrusion of the turbo duct bracket to the rotation stopper hole.
- Align the protrusion of the cushion with the cutout portion on the turbo duct bracket.
Tightening torque:
Nut: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Bolt: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

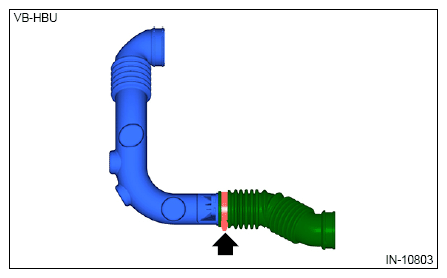

- Connect the turbo duct and the air intake boot.NOTE:
Align the protrusion on the turbo duct to the cutout portion of the air intake boot.
Tightening torque:
2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

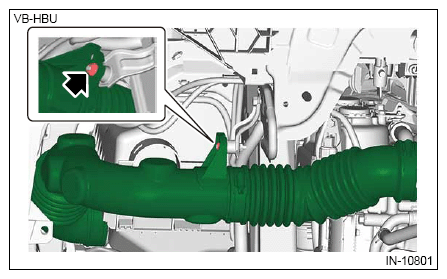

- Install the turbo duct and the air intake boot as a single unit.NOTE:
Align the cutout portion on the turbo duct to the protrusion of cushion.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the mud guard front RH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>INSTALLATION

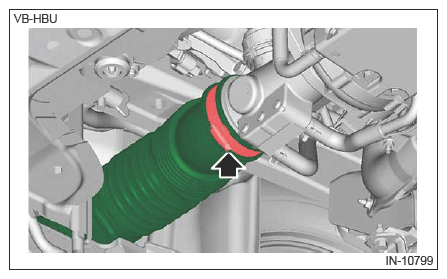

- Connect the air intake boot to the intake duct No. 1.NOTE:
Align the cutout portion of the air intake boot to the protrusion on the intake duct No. 1.
Tightening torque:
2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
- Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION

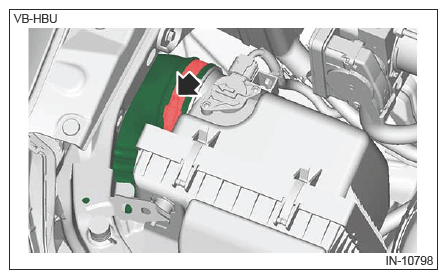

- Connect the turbo duct to the air cleaner case (rear).NOTE:
Align the cutout portion on the turbo duct to the protrusion of the air cleaner case (rear).
Tightening torque:
2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
