Section 30 (Engine Intake System (Induction)): Intercooler: Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily install the intake duct No. 3 using a new gasket.
  2. Tighten the bolts in the numerical order as shown in the figure.

    Tightening torque:

    16 N.m (1.6 kgf-m, 11.8 ft-lb)

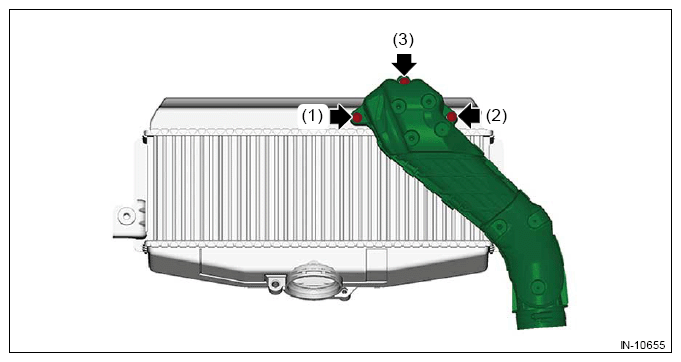

    Fig 1: Intake Duct No. 3 Bolts Tightening Sequence
    G13198601Courtesy of SUBARU OF AMERICA, INC.
