Rear Stabilizer: Installation
CAUTION:
- For parts which are not reusable, always use new parts.
- Always tighten the bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.

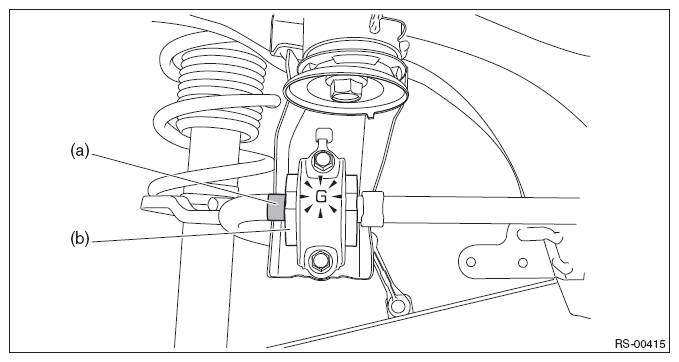

- Install the clamp - stabilizer bushing with the "G" character facing upward.
- When installing, align the edge of identification paint (a) to the end face of the bushing (b).
- Before installation, inspect the following items and replace any faulty part with a new one.
- Check the bushing - stabilizer for abnormal cracks, fatigue or damage.
- Check the stabilizer link for damage.
- Install the rear stabilizer.
Tightening torque:
Clamp - stabilizer bushing: 30 N.m (3.1 kgf-m, 22.1 ft-lb)
Stabilizer link: 38 N.m (3.9 kgf-m, 28 ft-lb)
- Install the rear wheels and lower the vehicle.
Tightening torque:
120 N.m (12.2 kgf-m, 88.5 ft-lb)
