Front Crossmember Support Plate: Removal

1. Lift up the vehicle.
2. Remove the under cover - front. Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
3. Remove the bolt, and remove the front crossmember support.

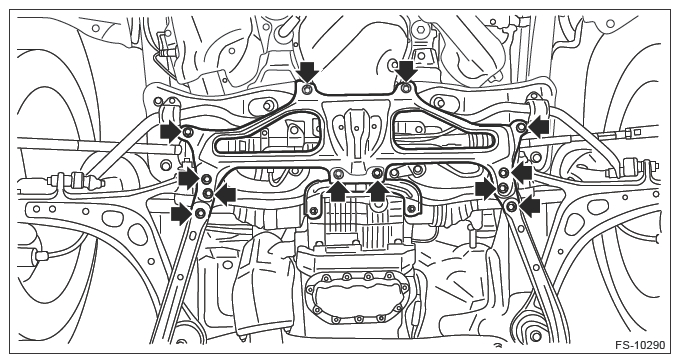

   • Electric power steering model

     Courtesy of SUBARU OF AMERICA, INC.

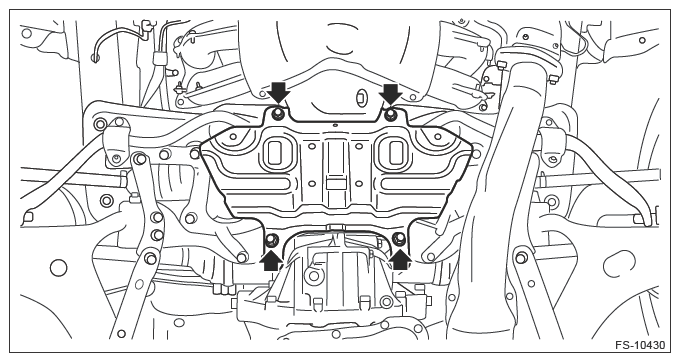

   • Hydraulic power steering model

   Courtesy of SUBARU OF AMERICA, INC.

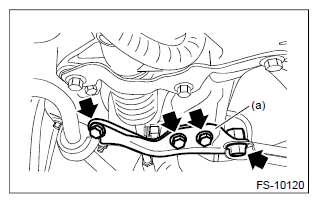

4. Remove the bolt, and remove the support plate - front crossmember (a). (Electric power steering model)

Courtesy of SUBARU OF AMERICA, INC.
