Operating Cylinder

• Except for STI model

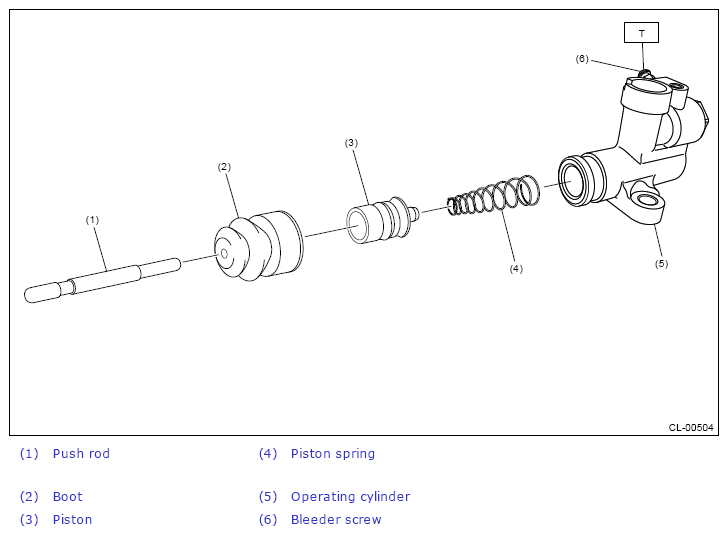

  Fig 1: Operating Cylinder Components (With Torque Specification) (Except For STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8, 5.8)
