Master Cylinder: Disassembly

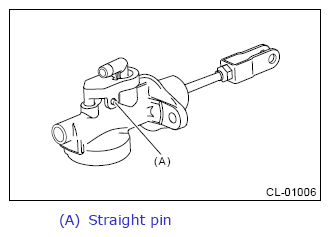

  1. Remove the straight pin and nipple.
    G13647013Courtesy of SUBARU OF AMERICA, INC.

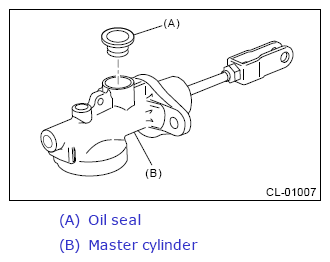

  2. Remove the oil seal.
    G13647014Courtesy of SUBARU OF AMERICA, INC.

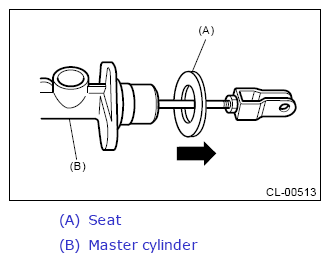

  3. Move the seat towards the rear.
    G13647015Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the piston stop ring.
    CAUTION: When removing the piston stop ring, be careful to prevent the rod, washer, piston and return spring from popping out.
