Master Cylinder: Installation

Attach the clutch hose bracket to the bulkhead.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the master cylinder to the body, and connect the clutch pipe and the reservoir hose.
Tightening torque:

T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

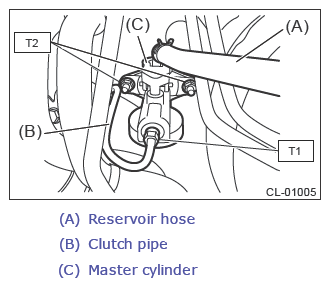

Fig 1: Master Cylinder, Clutch Pipe, Reservoir Hose And Nuts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

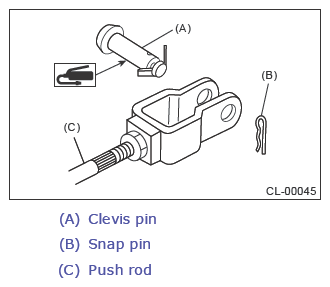

Connect the push rod of the master cylinder, and install the clevis pin and snap pin.
CAUTION: Always use a new clevis pin.

NOTE: Apply grease to the clevis pin.

Courtesy of SUBARU OF AMERICA, INC.
Install the knee airbag module. Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
Add recommended brake fluid. Refer to CLUTCH SYSTEM>CLUTCH FLUID .
After bleeding air from the clutch system, ensure that the clutch operates properly. Refer to CLUTCH SYSTEM>CLUTCH FLUID AIR BLEEDING .
Install the instrument panel lower cover. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
Install the intercooler.
STI model:

Refer to INTAKE (INDUCTION) (STI)>INTERCOOLER>INSTALLATION .

Except for STI model:

Refer to INTAKE (INDUCTION) (W/O STI)>INTERCOOLER>INSTALLATION .
Install the collector cover. (Except for STI model) Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>INSTALLATION .
Connect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
NOTE: For models other than STI model, connect the ground terminal to battery sensor.
