Home >> Subaru >> 2021 >> WRX STI >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.5L) >> Manifold Absolute Pressure Sensor >> Removal

Manifold Absolute Pressure Sensor: Removal

  1. Disconnect the ground cable from battery.

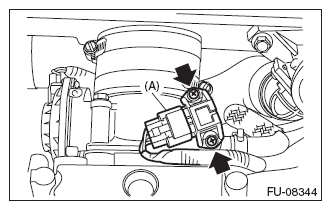

  2. Disconnect the connector (A) from the manifold absolute pressure sensor, and remove the manifold absolute pressure sensor from throttle body.
    G10264830Courtesy of SUBARU OF AMERICA, INC.
