Home >> Subaru >> 2021 >> WRX STI >> Repair and Diagnosis >> Engine Performance >> Engine Ignition System (2.5L) >> Spark Plug >> Removal >> LH Side

LH Side

  1. Remove the battery. Refer to STARTING/CHARGING SYSTEMS(STI)>BATTERY>REMOVAL .
  2. Remove the secondary air pump. Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (STI)>SECONDARY AIR PUMP>REMOVAL .

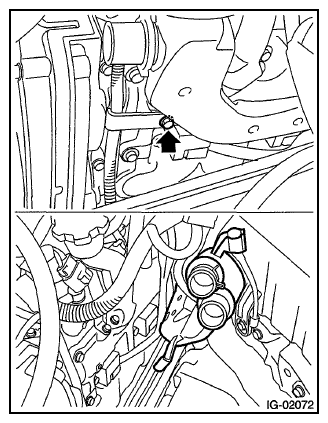

  3. Remove the bolts that secure the air duct to the rocker cover LH, and lift the air duct.
    G06333842Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from ignition coil.
    CAUTION: Be careful not to damage the claw (a) of the connector.
    G11574057Courtesy of SUBARU OF AMERICA, INC.

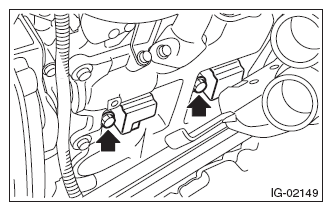

  5. Remove the ignition coil.
    NOTE: Turn #4 ignition coil by 180° to remove it.
    G08539623Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spark plug with a spark plug socket.
