Transmission Control Device: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the parking pawl. Ref. to AUTOMATIC TRANSMISSION>PARKING PAWL>REMOVAL .

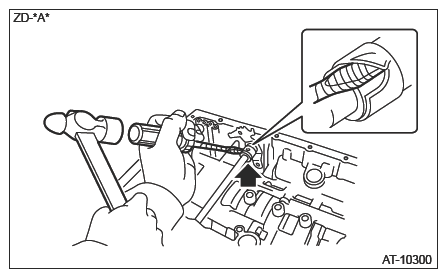

3. Using a flat tip screwdriver wrapped with protection tape, remove the spacer.
   CAUTION: Be careful not to damage the manual valve lever shaft.

   Courtesy of SUBARU OF AMERICA, INC.

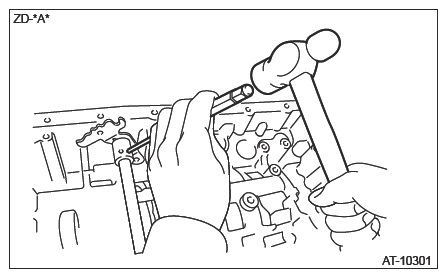

4. Remove the spring pin.
   NOTE: Be careful not to drop the spring pin in the transmission.

   Courtesy of SUBARU OF AMERICA, INC.

5. Remove the manual plate and the manual valve lever shaft.

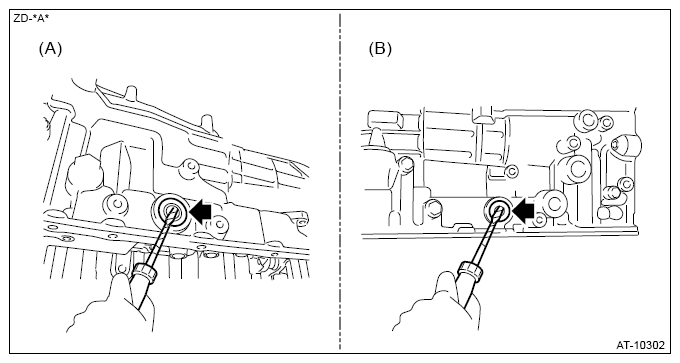

6. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
   CAUTION: Be careful not to damage the transmission case.

Courtesy of SUBARU OF AMERICA, INC.

(A)	LH side
(B)	RH side
