Thermo Control Valve Assembly: Installation

  1. When thermo control valve assembly is replaced
    1. Install a new gasket to the thermo control valve assembly.

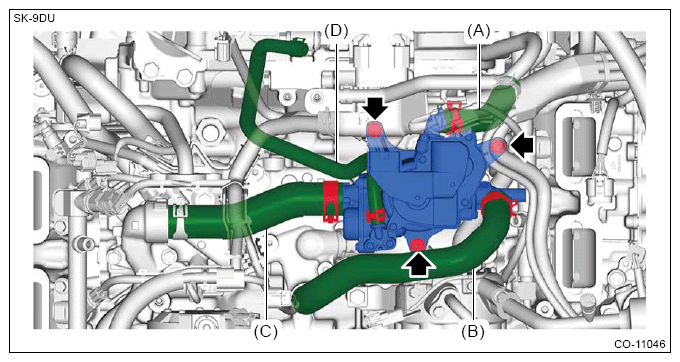

    2. Connect the thermo control valve assembly to the water hose (A), water hose (B) and water hose (C).
    3. Install the bolts securing the thermo control valve assembly.

      Tightening torque:

      16 N.m (1.6 kgf-m, 11.8 ft-lb)

    4. Connect the preheater hose (D).
    G14384360Courtesy of SUBARU OF AMERICA, INC.
  2. When thermo control valve assembly is not replaced

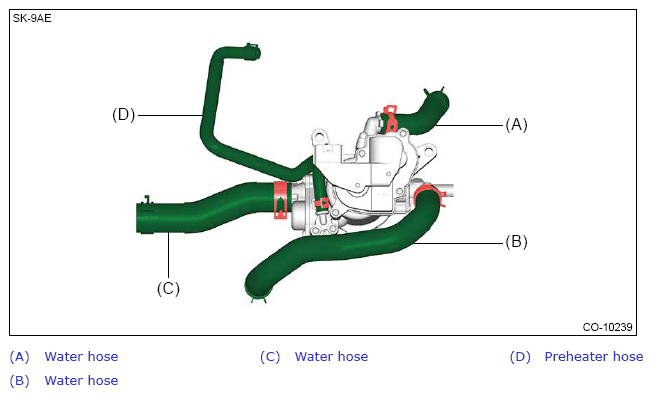

    1. Connect each new hose to the thermo control valve assembly.
      G14384364Courtesy of SUBARU OF AMERICA, INC.
    2. Install a new gasket to the thermo control valve assembly.

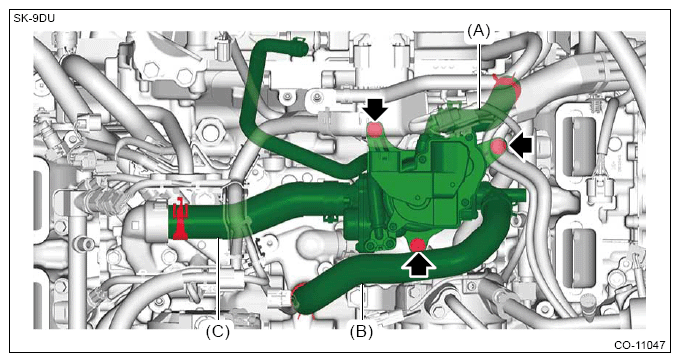

    3. Connect the water hose (A), water hose (B) and the water hose (C).
    4. Install the bolts securing the thermo control valve assembly.

    Tightening torque:

    16 N.m (1.6 kgf-m, 11.8 ft-lb)

    G14384361Courtesy of SUBARU OF AMERICA, INC.
  3. Install the engine wiring harness stay.
    NOTE: Use the following formula to calculate the reading of a torque wrench when tightening with a crowfoot wrench.
    Calculation formula
    T = 19 N.m (1.9 kgf-m, 14.0 ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.
    G14384366Courtesy of SUBARU OF AMERICA, INC.

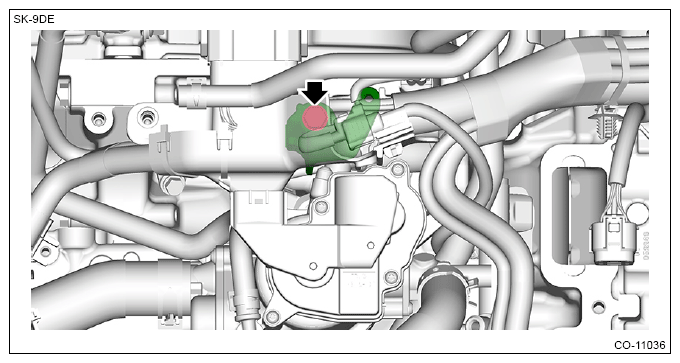

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G14384359Courtesy of SUBARU OF AMERICA, INC.

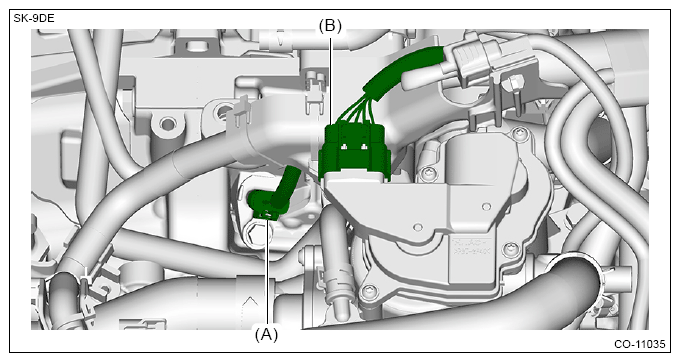

  4. Connect the connector (A) and connector (B).
    G14384358Courtesy of SUBARU OF AMERICA, INC.

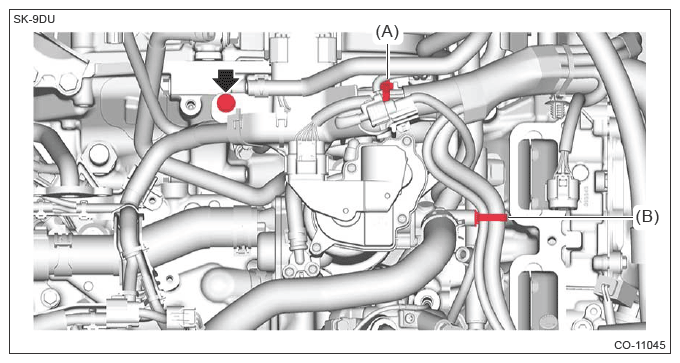

  5. Install the clip (A) and clip (B) and install the bolt securing the engine ground and the harness case.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G14384357Courtesy of SUBARU OF AMERICA, INC.
  6. Install the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  7. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  8. Fill engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
