Home >> Subaru >> 2022 >> Forester Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Auto Start Stop System (Diagnostics) >> Electrical Component Location >> Location

Auto Start Stop System (Diagnostics): Electrical Component Location: Location

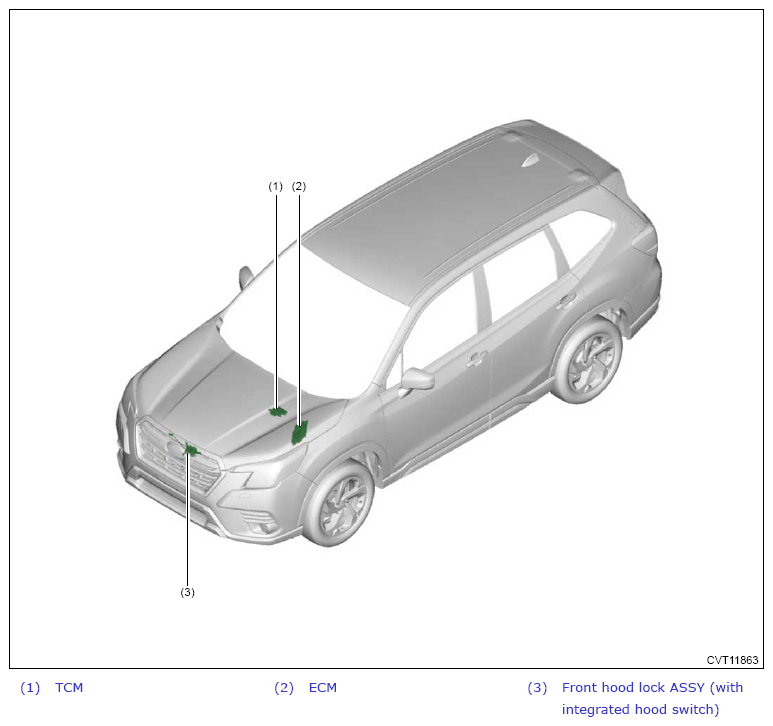

G14414917Courtesy of SUBARU OF AMERICA, INC.

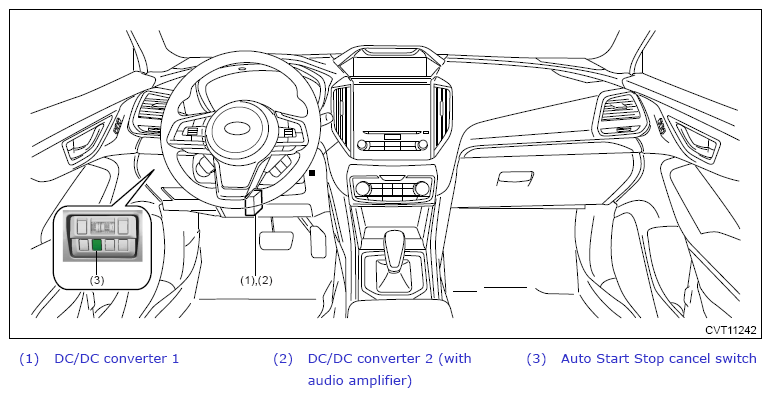

G14414918Courtesy of SUBARU OF AMERICA, INC.

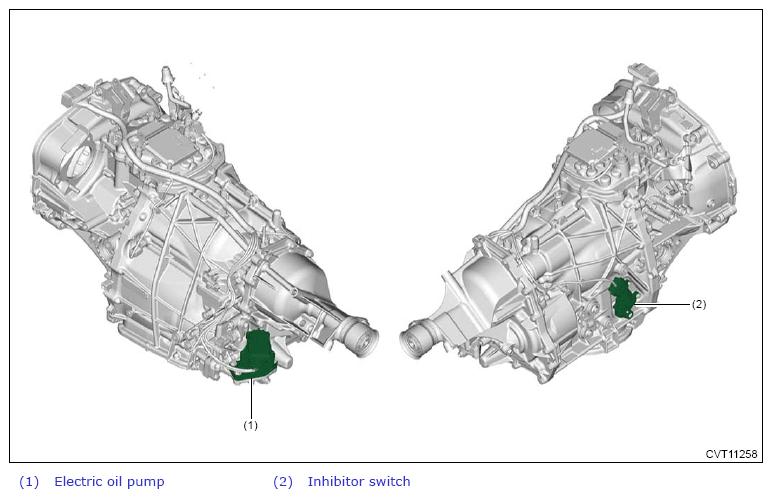

G14414919Courtesy of SUBARU OF AMERICA, INC.

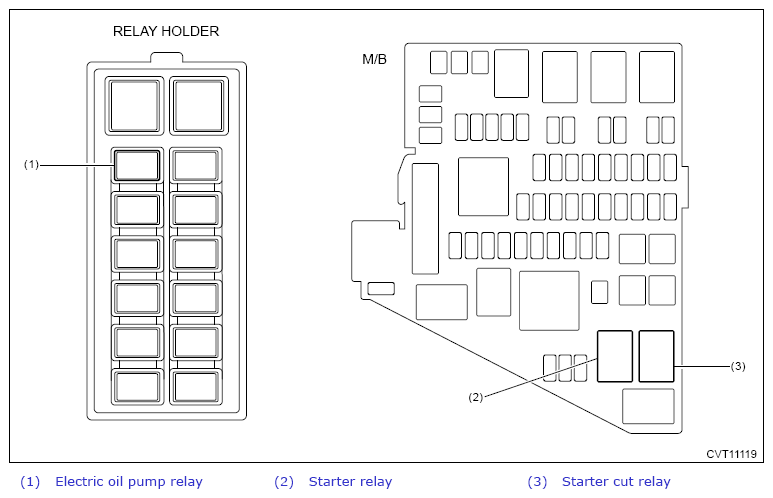

G14414920Courtesy of SUBARU OF AMERICA, INC.
