Components With Torque Specifications: Starter

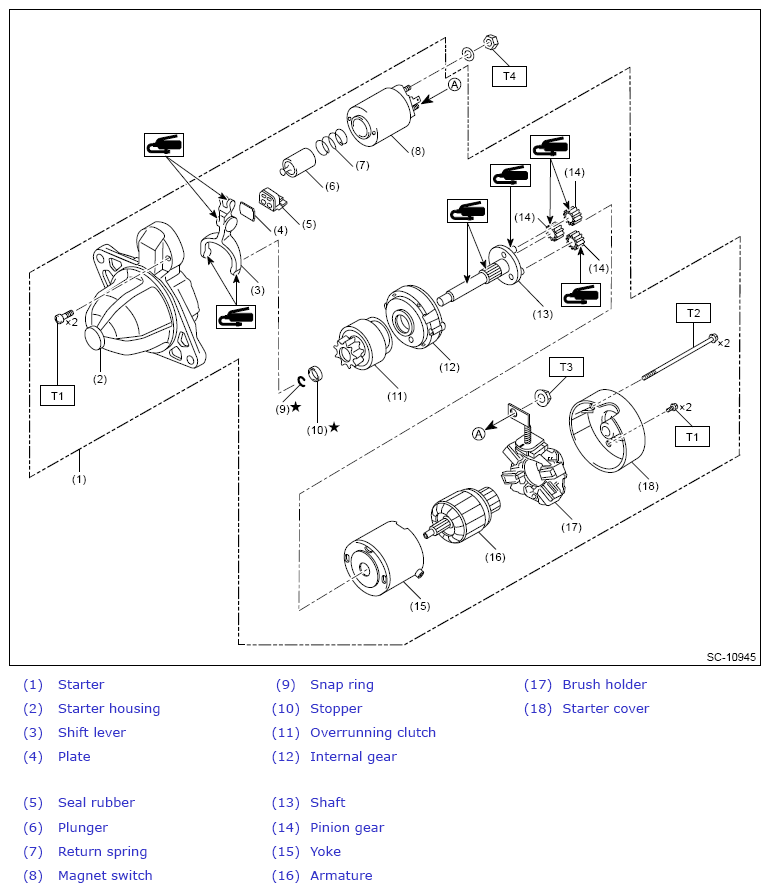

Fig 1: Starter Components (With Torque Specifications) - CVT Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 3.5 (0.4, 2.6)

T3: 10.7 (1.1, 7.9)

T4: 11 (1.1, 8.1)

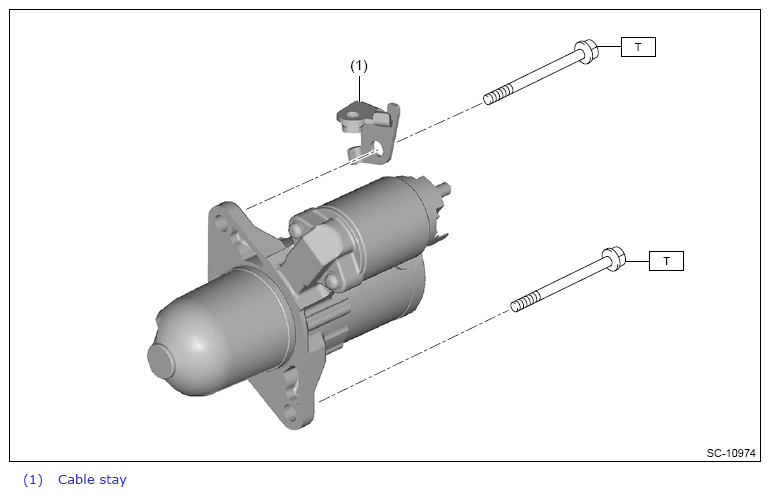

Fig 2: Starter Components (With Torque Specifications) - CVT Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 50 (5.1, 36.9)

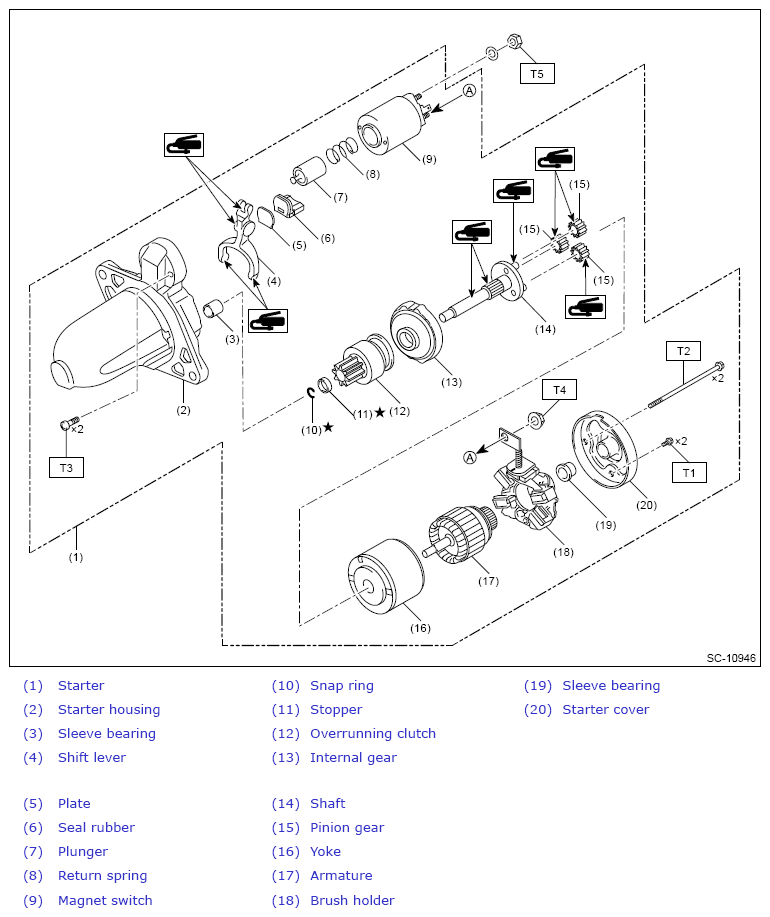

Fig 3: Starter Components (With Torque Specifications) - MT Model (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.1, 1.0)

T2: 6 (0.6, 4.4)

T3: 7.5 (0.8, 5.5)

T4: 10 (1.0, 7.4)

T5: 11 (1.1, 8.1)

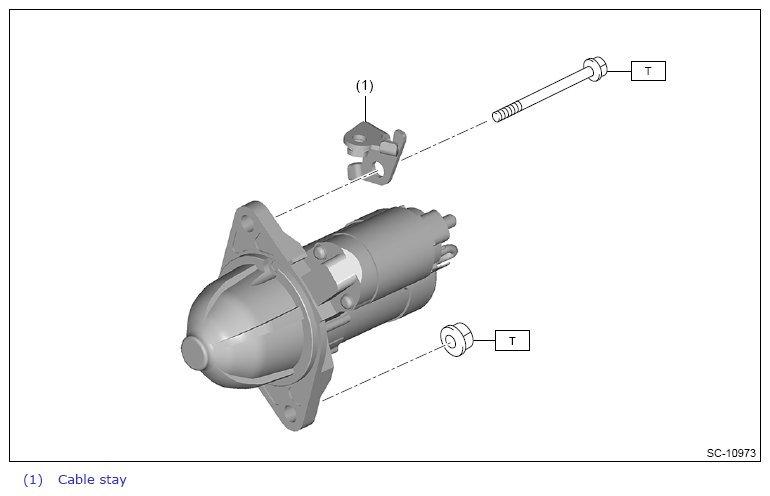

Fig 4: Starter Components (With Torque Specifications) - MT Model (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 50 (5.1, 36.9)
