Carrier Car
CAUTION:
If any of the following conditions is met, the headlight beam may deviate. If the headlight beam deviates, perform fuse resetting. Ref. to LIGHTING SYSTEM>AUTO HEADLIGHT BEAM LEVELER SYSTEM>PROCEDURE>FUSE RESET
- Difference has occurred to the angle of road surface between when the ignition switch is turned to OFF and when the ignition switch is turned to ON.
- Difference has occurred to the angle of road surface between when the ignition switch is turned to OFF and when the vehicle speed is 0 km/h (0 MPH).
When carrying the vehicle onto a car carrier truck, observe the following precautions.
CAUTION:

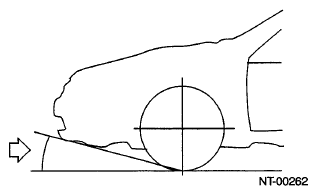

- When carrying the vehicle onto a car carrier truck, perform the operation being careful with the gap between the height of the carrier's floor and the vehicle lower side because of little clearance under the front bumper.
- Use a supporting board (rubber) where the clearance is too small.

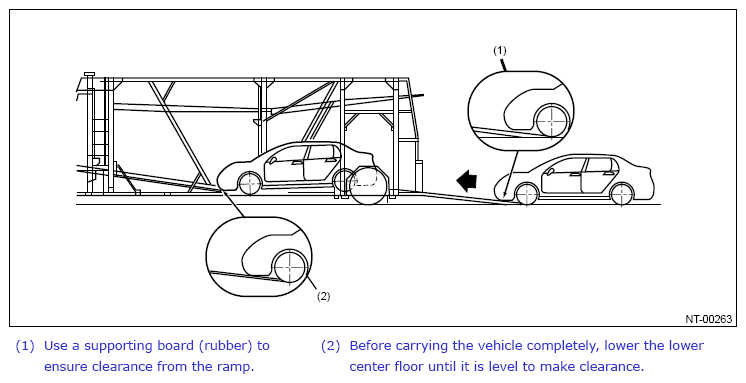

- Perform the operation being careful with the position shown in the figure below.
Before lowering the vehicle from the carrier car, perform the following operations.
CAUTION:
Always perform the following operations before lowering the vehicle from the carrier car. Otherwise, the power unit will rotate reversely, which may cause the damage to the engine, vacuum pump, and transmission.
- Start the engine.
- Set the transmission gear shift lever or select lever position into driving direction of the vehicle. (When the vehicle drives forward, do not shift the transmission in reverse or "R range". When the vehicle drives rearward, do not set the transmission to 1 - 6 speed, or to "D range".)CAUTION:
Be sure to perform 2. mentioned above even if the engine cannot be started in some reasons.
