Operating Cylinder: Installation

Install the operating cylinder.
Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

Using a new gasket, connect the clutch hose.

NOTE:

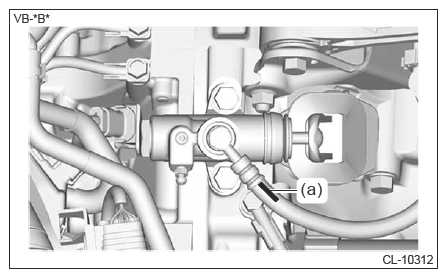

Face the mark (a) of the clutch hose in the top direction.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Bleed air from the clutch fluid. Ref. to CLUTCH SYSTEM>AIR BLEEDING>PROCEDURE
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION
