Cockpit Control System (Diagnostics)
>>
General Description
>>

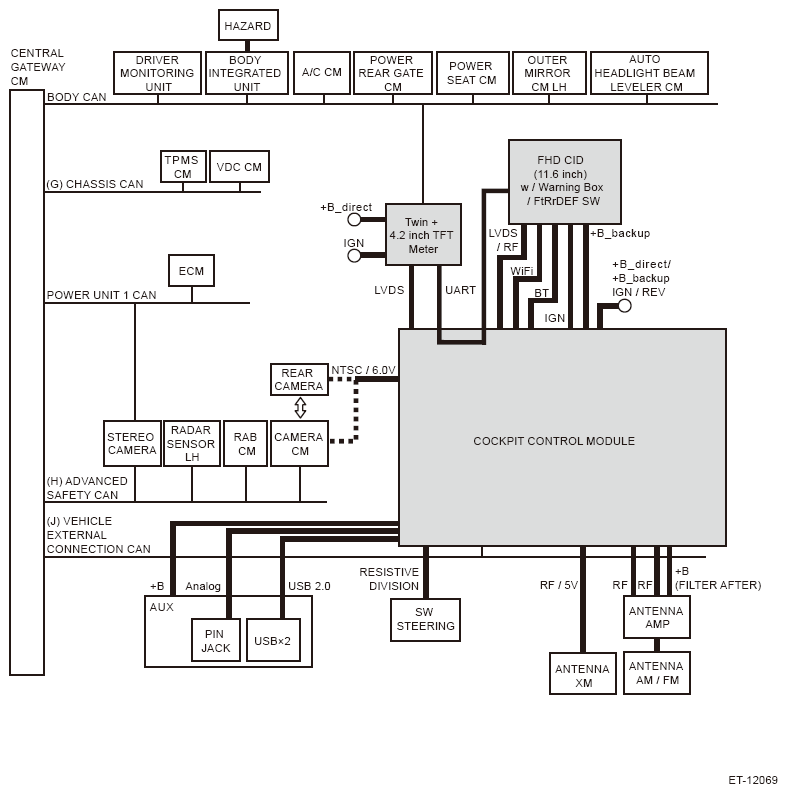

System Block Diagram
System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
WITHOUT AUDIO AMPLIFIER AND WITHOUT TELEMATICS
Courtesy of SUBARU OF AMERICA, INC.
WITHOUT AUDIO AMPLIFIER AND WITH TELEMATICS
Courtesy of SUBARU OF AMERICA, INC.
WITH AUDIO AMPLIFIER AND WITH TELEMATICS
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
