Components With Torque Specifications

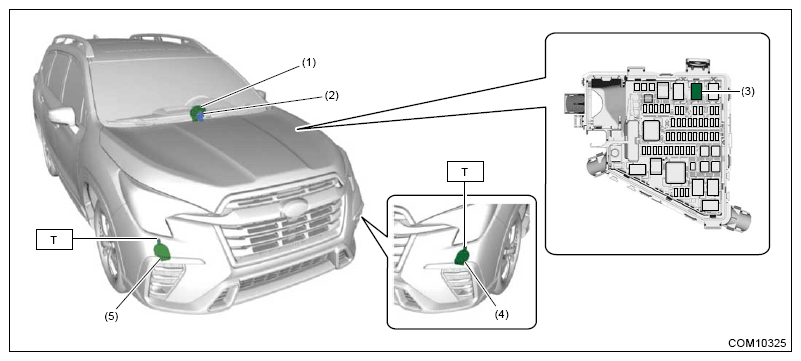

Fig 1: Horn System Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Horn switch (driver's airbag module)
(2)	Steering roll connector
(3)	Horn relay
(4)	Horn ASSY Hi
(5)	Horn ASSY Lo

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
