Heat Shield Cover

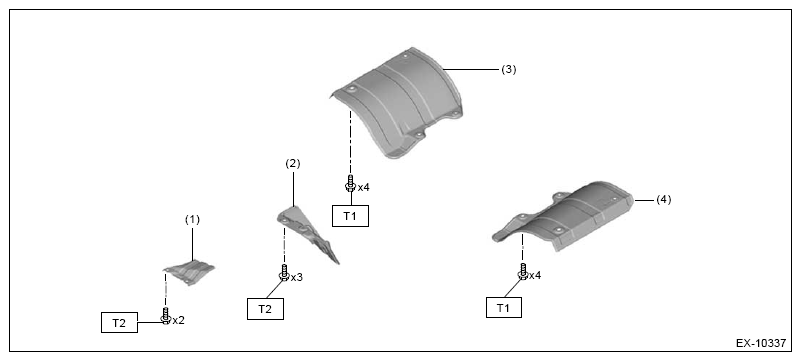

Fig 1: Heat Shield Cover Components Location
G16439365Courtesy of SUBARU OF AMERICA, INC.
(1) Center exhaust cover (front)
(2) Center exhaust cover (rear)
(3) Rear exhaust cover RH
(4) Rear exhaust cover LH

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
