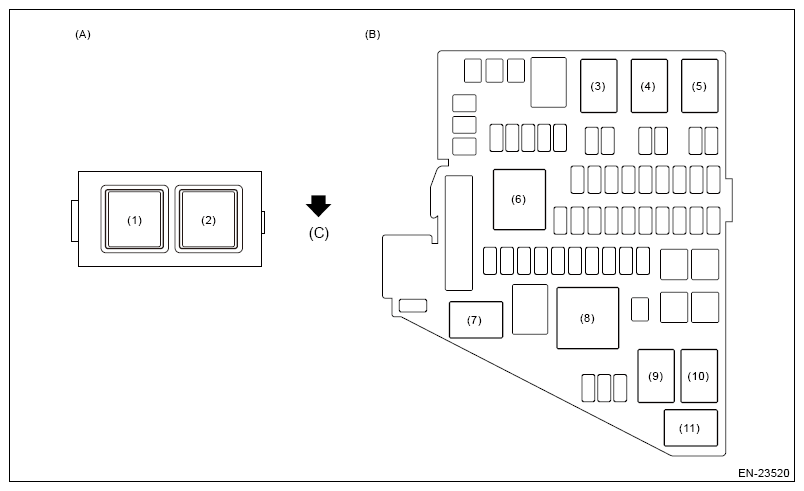

Fuse And Relay

Courtesy of SUBARU OF AMERICA, INC.

(A)	Relay holder
(B)	M/B
(C)	Forward
(1)	Main fan relay
(2)	Sub fan relay
(3)	-
(4)	-
(5)	Fuel pump relay
(6)	Main relay
(7)	-
(8)	-
(9)	Starter relay
(10)	Starter cut relay
(11)	Electronic throttle control relay
* Only shows parts required for engine diagnosis.
