Tie-Down Range
For ground transportation
- Tie-down at 4 locations
CAUTION:
When the vehicle is tied down toward the vehicle inside, hook the hooks on the rear tie-down holes from vehicle inside. When the vehicle is tied down toward the vehicle outside, hook the hooks from vehicle outside.

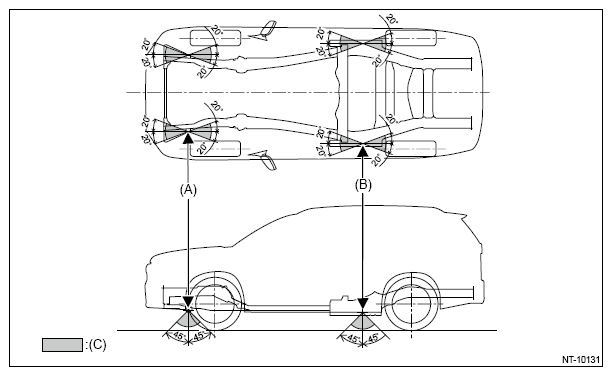

| (A) | Front tie-down hook |
| (B) | Rear tie-down hole |
| (C) | Chain pulling range at tie-down condition |
- Tie-down at 2 locations
CAUTION:
Pull the tie-down hook rope evenly to the front and rear side. Do not hook the hooks outside the wheelbase to avoid up/down pitching.
NOTE:
The length (D) should be the same.
| (A) | Rear tie-down hole |
| (B) | Tie-down hook |
| (C) | Hook |
| (D) | Rope length |
For sea transportation
CAUTION:
For sea transportation, do not use a front tie-down hook, front towing hook, and rear tie-down hole.

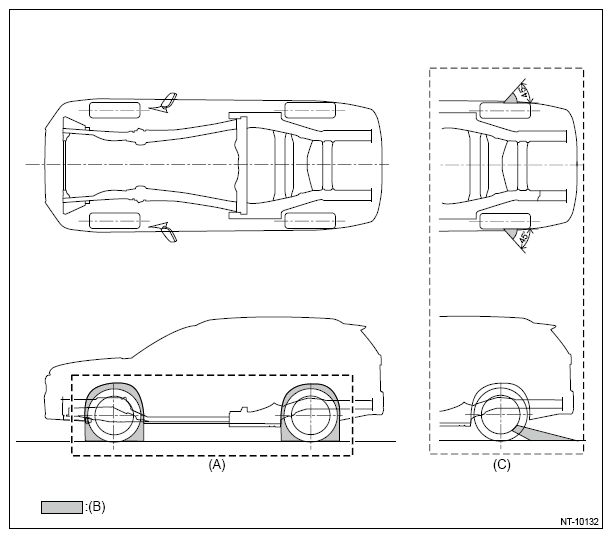

| (A) | When front tire and rear tire are tied down |
| (B) | Pulling range of lashing belt at tie-down |
| (C) | When rear wheel is tied down |
