Reduction Driven Gear: Disassembly

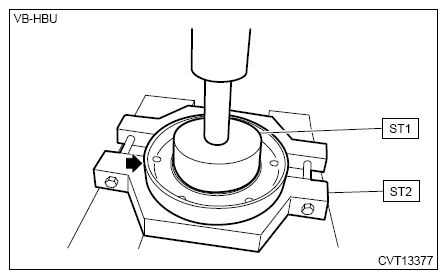

  1. Remove the bearing retainer using ST1, ST2 and a press.
    CAUTION: Be careful not to drop the reduction driven gear.

    Preparation tool:

    ST1: INSTALLER (20099AE020)

    ST2: BEARING REMOVER (18767AA000)

    G14611370Courtesy of SUBARU OF AMERICA, INC.

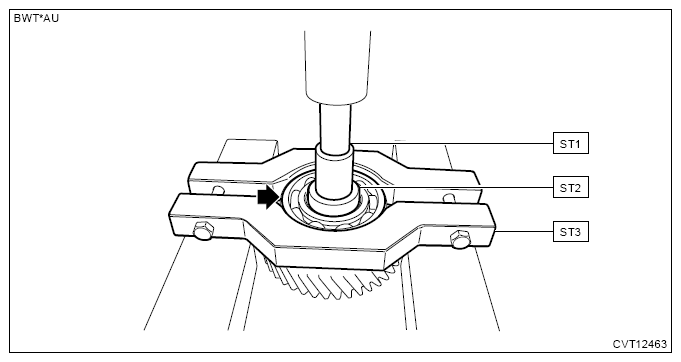

  2. Using the ST1, ST2, ST3 and a press, remove the ball bearing from the reduction driven gear.
    CAUTION: Be careful not to drop the reduction driven gear.

    Preparation tool:

    ST1: REMOVER (899864100)

    ST2: SEAT (398497701)

    ST3: REMOVER (498077600)

    G13622208Courtesy of SUBARU OF AMERICA, INC.
