Transfer Reduction Driven Gear: Installation
- Select the transfer reduction driven gear shim.

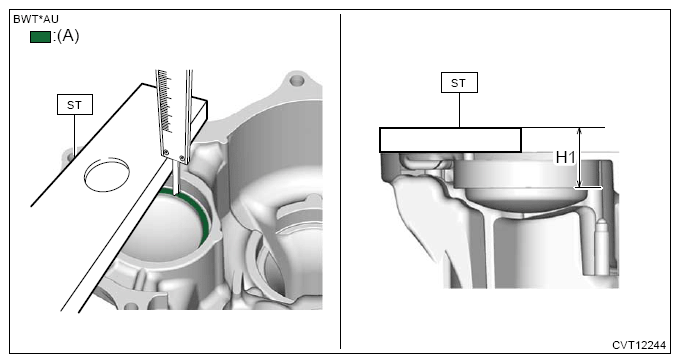

- Using the ST, measure the height "H1" from the ST end face to the ball bearing catch surface.
Preparation tool:
ST: GAUGE (499575600)
(A) Measurement surface - Install the transfer reduction driven gear to the intermediate case.

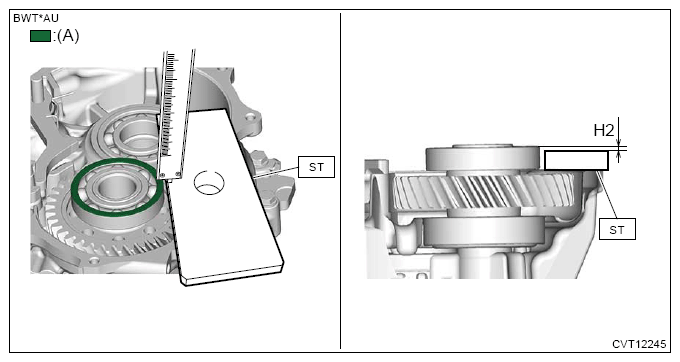

- Using the ST, measure the height "H2" from the end face of the ball bearing outer ring to the ST.
Preparation tool:
ST: GAUGE (499575600)
(A) Measurement surface - Using the following calculation, calculate an appropriate thickness "T" of the transfer reduction driven gear shim.
NOTE: Adjust using 0 to 2 pieces.T = (H1 - 15 mm (0.6 in)) - (H2 + 15 mm (0.6 in)) - 0.05 - 0.25 mm (0.002 - 0.010 in)
T Transfer reduction driven gear shim thickness (mm (in)) H1 Measured value (mm (in)) of step (1) H2 Measured value (mm (in)) of step (3) 15 mm (0.6 in) Thickness of ST 0.05 - 0.25 mm (0.002 - 0.010 in) Clearance specification - Using the ST, measure the height "H1" from the ST end face to the ball bearing catch surface.

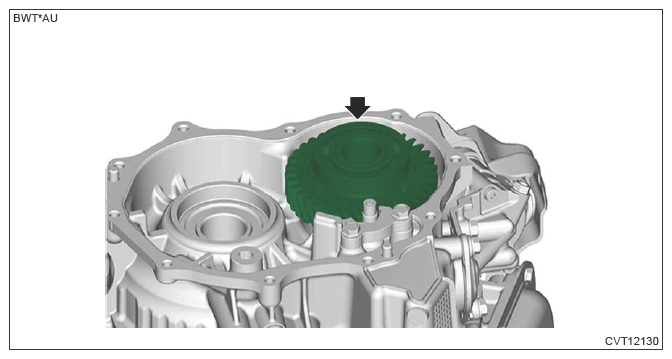

- Install the transfer reduction driven gear.
- Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
