Output Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of the output revolution sensor, replace it with a new part.
  1. Remove the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .

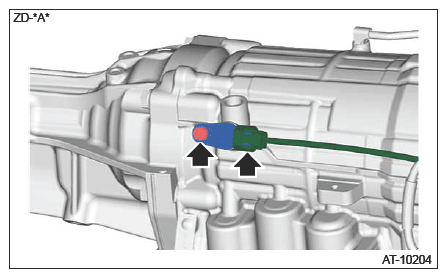

  2. Disconnect the connector and remove the output revolution sensor.
    G16525672Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the output revolution sensor.
