Select Lever Rod: Removal

  1. Remove the center exhaust pipe. Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>REMOVAL .

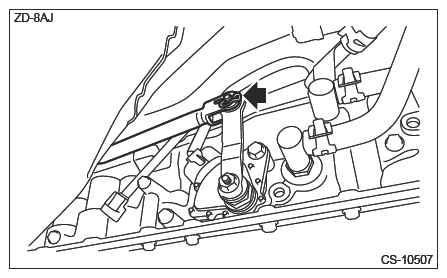

  2. Disconnect the select lever rod.
    G16525474Courtesy of SUBARU OF AMERICA, INC.

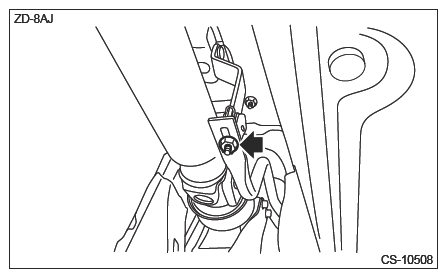

  3. Remove the select lever rod.
G16525475Courtesy of SUBARU OF AMERICA, INC.
