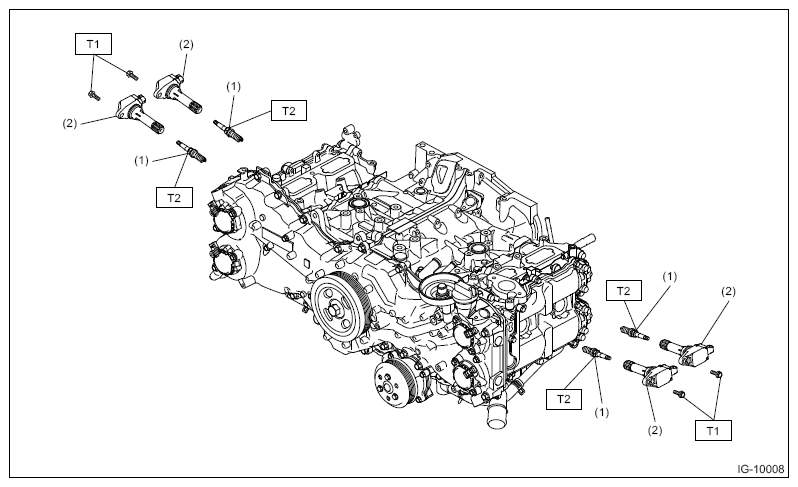

Components With Torque Specifications

G16346885

Courtesy of SUBARU OF AMERICA, INC.

(1)	Spark plug
(2)	Ignition coil

Tightening torque: N.m (kgf-ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)
