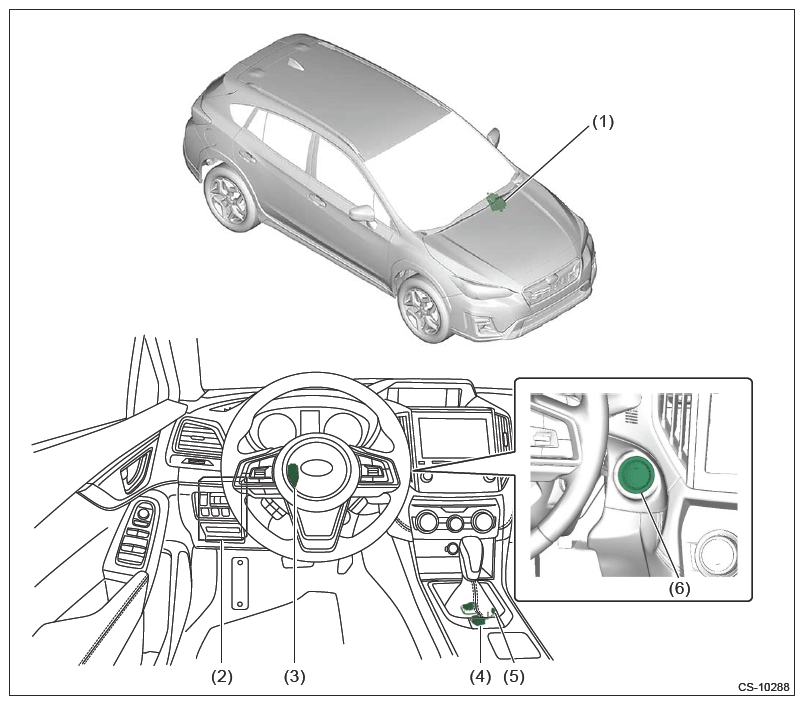

CROSSTREK Hybrid Model

Courtesy of SUBARU OF AMERICA, INC.

(1)	Hybrid vehicle control ECU assembly ("P" range)
(2)	Body integrated unit
(3)	Stop light and brake switch
(4)	Solenoid unit
(5)	"P" range switch
(6)	Push button ignition switch
