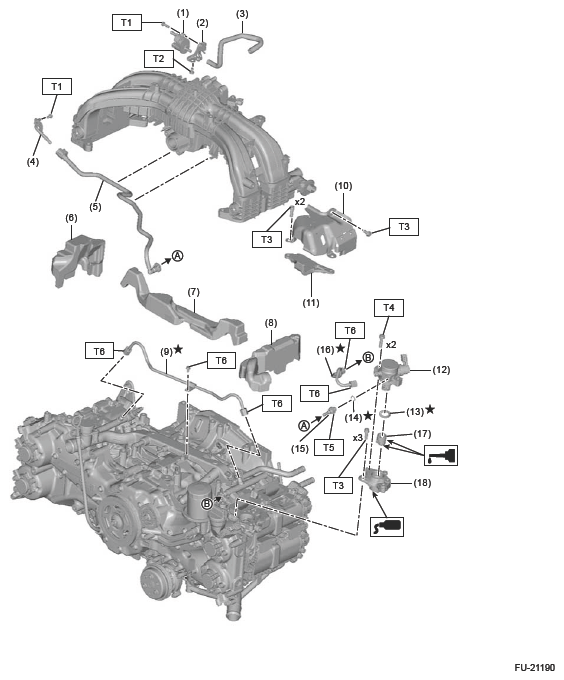

Fuel Pipe
| (1) | Purge control solenoid valve |
| (2) | Purge control solenoid valve bracket |
| (3) | Vacuum hose |
| (4) | Fuel pipe |
| (5) | Fuel delivery pipe A |
| (6) | Fuel pipe insulator No. 1 |
| (7) | Fuel pipe insulator No. 2 |
| (8) | Fuel pipe insulator No. 3 |
| (9) | High-pressure fuel delivery pipe ASSY |
| (10) | Fuel pipe protector No. 1 |
| (11) | Fuel pipe protector No. 2 |
| (12) | High-pressure fuel pump |
| (13) | O-ring |
| (14) | Gasket |
| (15) | Fuel delivery pipe B |
| (16) | High-pressure fuel delivery pipe |
| (17) | Fuel pump lifter |
| (18) | High-pressure fuel pump case |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 12 (1.2, 8.9)
T3: 19 (1.9, 14.0)
T4: 21 (2.1, 15.5)
T5: 48 (4.9, 35.4)
T6: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION .
