Fuel Pump

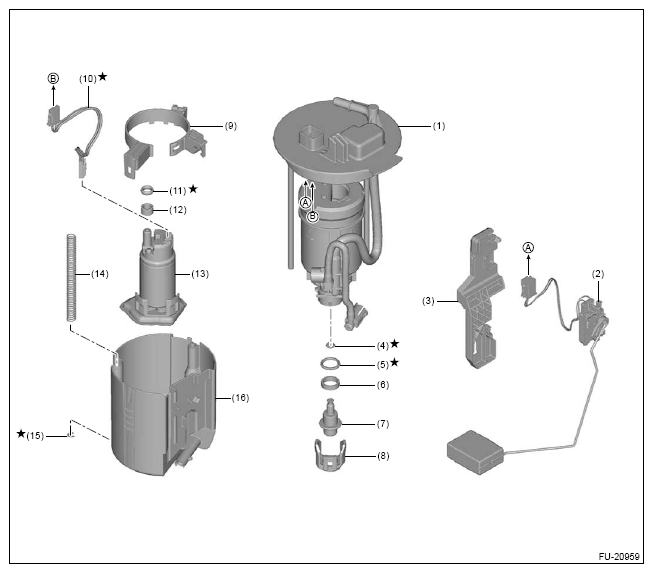

G16347017Courtesy of SUBARU OF AMERICA, INC.
(1) Fuel filter ASSY
(2) Fuel level sensor
(3) Stay
(4) O-ring
(5) O-ring
(6) Back-up ring
(7) Pressure regulator
(8) Pressure regulator cap
(9) Fuel pump holder
(10) Connector cable
(11) O-ring
(12) Spacer
(13) Fuel pump
(14) Spring
(15) Clip
(16) Fuel chamber ASSY
