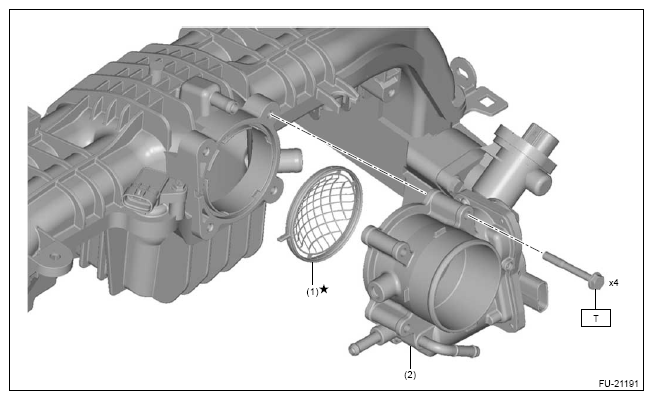

Throttle Body

G16347008

Courtesy of SUBARU OF AMERICA, INC.

(1)	Gasket
(2)	Throttle body

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
