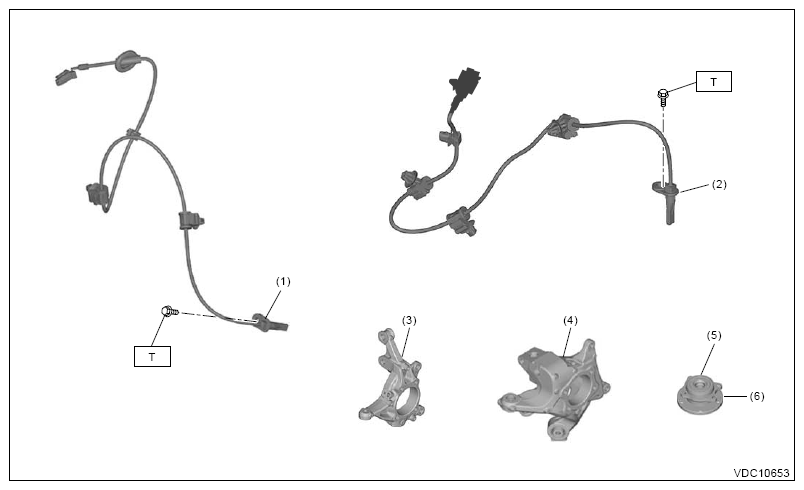

Abs Wheel Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Sensor sub ASSY front |
| (2) |
Sensor sub ASSY rear |
| (3) |
Front axle housing |
| (4) |
Rear axle housing |
| (5) |
Magnetic encoder |
| (6) |
Hub unit bearing |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
