Components With Torque Specifications: Plate

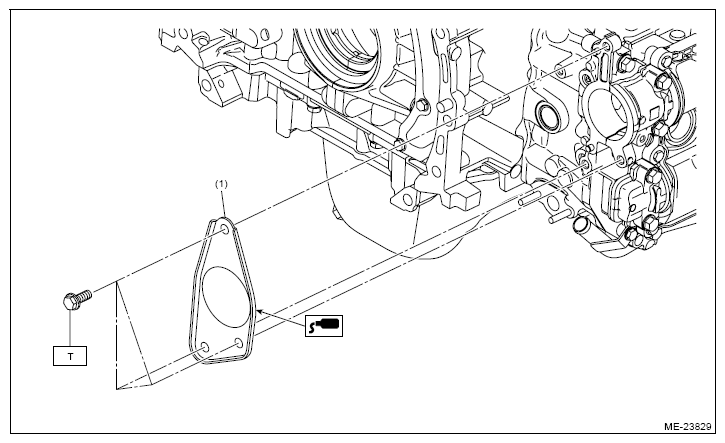

Fig 1: Plate Component Location
G16335115Courtesy of SUBARU
(1) Plate

Tightening torque: N.m (kgf-m, ft-lb)

T: 16 (1.6, 11.8)
