Front Suspension System And Wheel Alignment: Stabilizer: Removal: Stabilizer

1. Disconnect the ground terminal from battery sensor. (H4DO model) Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Lift up the vehicle.
3. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
4. Remove the under guard front. (H4DOTC model) Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
5. Remove the front exhaust pipe. (H4DO model) Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .
6. Remove the center exhaust pipe (rear). (H4DOTC model) Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

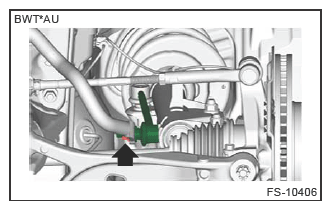

7. Remove the nut and disconnect the stabilizer link front (lower part).

   Courtesy of SUBARU OF AMERICA, INC.

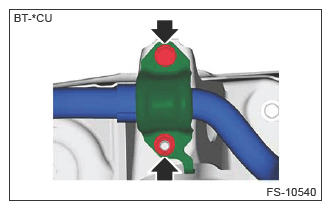

8. Remove the clamp stabilizer on the left and right sides, and remove the rubber bushing stabilizer front.
   NOTE: The left and right clamp stabilizers differ in shape.

   Courtesy of SUBARU OF AMERICA, INC.

9. Slide the stabilizer front to the right side of the vehicle.

   Courtesy of SUBARU OF AMERICA, INC.

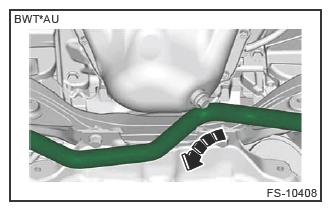

10. Remove the stabilizer front by moving it in the direction of arrow.

Courtesy of SUBARU OF AMERICA, INC.
