Home >> Subaru >> 2023 >> Outback Base >> Repair and Diagnosis >> Electrical >> Horns >> Horn System >> General Description >> Components With Torque Specifications

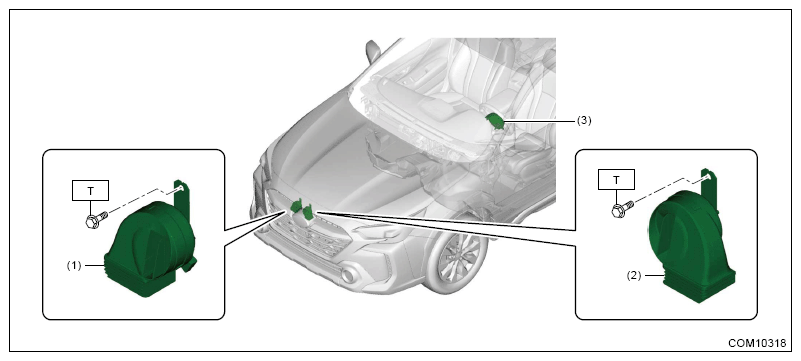

Components With Torque Specifications

G16386072

Courtesy of SUBARU OF AMERICA, INC.

(1)	Horn ASSY Hi
(2)	Horn ASSY Lo
(3)	Horn switch (driver's airbag module)

Tightening torque: N.M (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
