Fuel Pump Side

  1. Install the fuel level sensor to the fuel pump assembly.

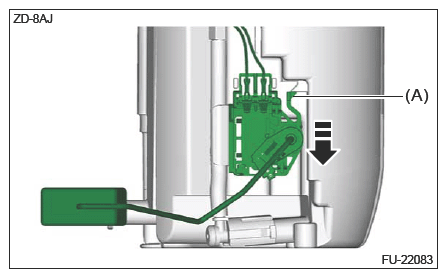

    1. Install the fuel level sensor and confirm that the claw (A) is locked securely.
      G16523497Courtesy of SUBARU OF AMERICA, INC.

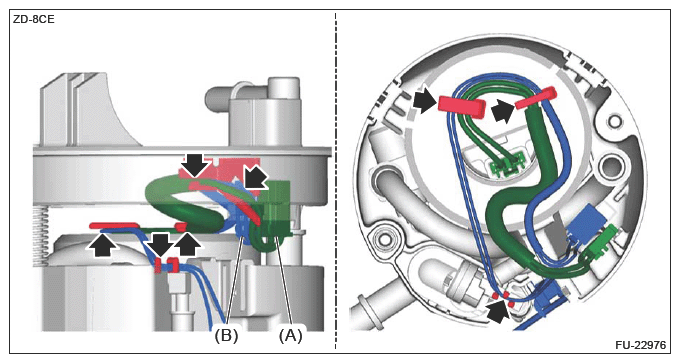

    2. Install the fuel level sensor harness and connector cable to the clip, and connect the fuel level sensor connector (B) and fuel pump connector (A).
      G16523491Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .
