Intake Manifold Assembly: Disassembly

1. When the engine coolant has been drained before removing the intake manifold assembly
   1. Remove the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>THROTTLE BODY>REMOVAL .
2. Remove the fuel injector (port injection side). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL INJECTOR>REMOVAL>PORT INJECTION SIDE .
3. Remove the purge control solenoid valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>PURGE CONTROL SOLENOID VALVE>REMOVAL .
4. Remove the manifold absolute pressure sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>MANIFOLD ABSOLUTE PRESSURE SENSOR>REMOVAL .
5. Remove the collector cover bracket. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>COLLECTOR COVER>REMOVAL .
6. Remove the vacuum pipe and vacuum hose.

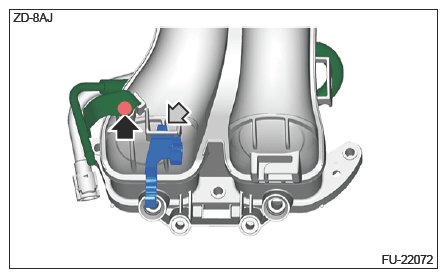

7. Remove the fuel delivery tube clamp.

   Courtesy of SUBARU OF AMERICA, INC.

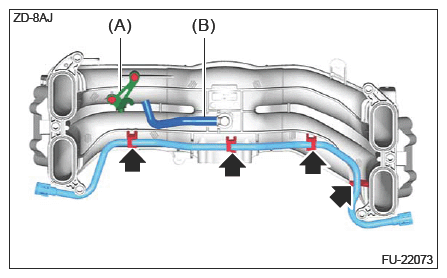

8. Remove the purge control solenoid valve bracket (A).
9. Remove the vacuum hose (B).
10. Remove the fuel delivery pipes.

Courtesy of SUBARU OF AMERICA, INC.
