Control Valve Body

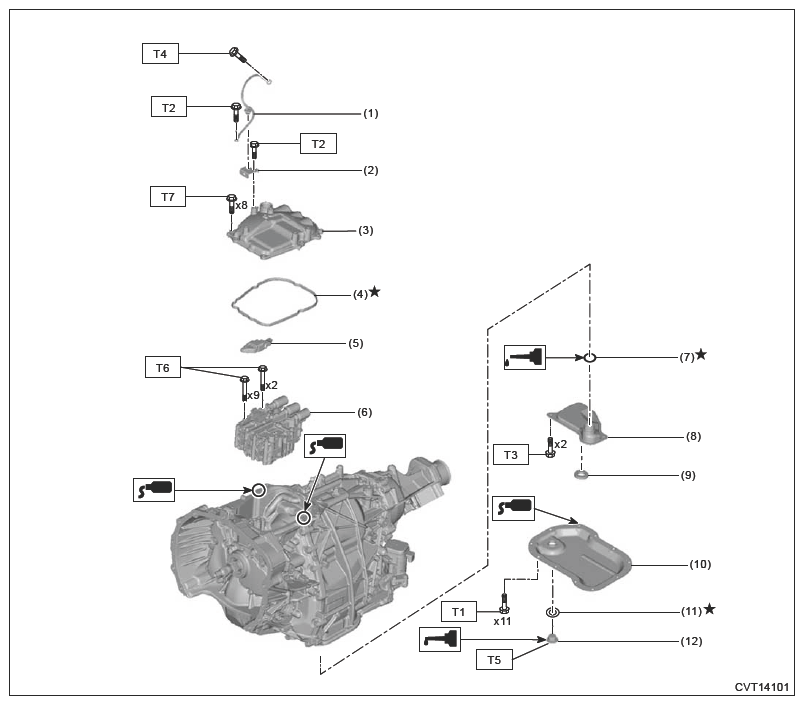

Fig 1: Control Valve Body Components Location

G16341804

Courtesy of SUBARU OF AMERICA, INC.

(1)

Ground cord

(2)

Air breather hose stay

(3)

Valve cover

(4)

Gasket

(5)

Connector cover

(6)

Control valve body

(7)

O-ring

(8)

Oil strainer

(9)

Magnet

(10)

Oil pan⁽¹⁾

(11)

Gasket

(12)

Drain plug⁽¹⁾

⁽¹⁾	The oil pan and drain plug are set parts.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 7 (0.7, 5.2)

T3: 9 (0.9, 6.6)

T4: 32.3 (3.3, 23.8)

T5: 47 (4.8, 34.7)

T6: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CONTROL VALVE BODY>INSTALLATION .

T7: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CONTROL VALVE BODY>INSTALLATION .
