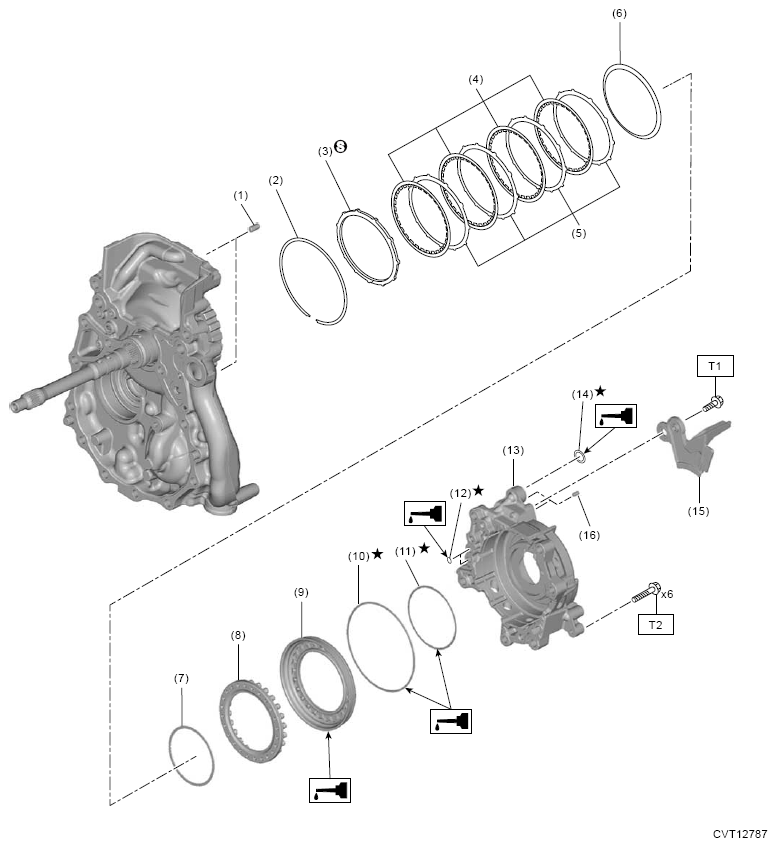

Reverse Brake
| (1) | Knock pin |
| (2) | Snap ring |
| (3) | Retaining plate |
| (4) | Drive plate |
| (5) | Driven plate |
| (6) | Dish plate |
| (7) | Snap ring |
| (9) | Reverse brake piston |
| (8) | Spring retainer |
| (10) | D-ring |
| (11) | D-ring |
| (12) | O-ring |
| (13) | Reverse brake housing |
| (14) | O-ring |
| (15) | Oil guide |
| (16) | Knock pin |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 37 (3.8, 27.3)
