Inhibitor Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
    G13868655Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the select cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.

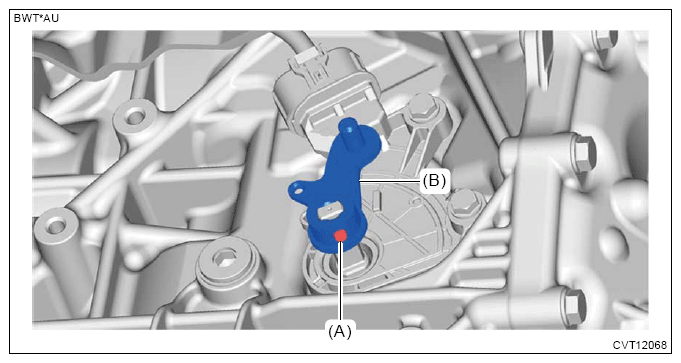

  4. Remove the spring pin (A) and remove the shifter arm (B).
    G13603163Courtesy of SUBARU OF AMERICA, INC.

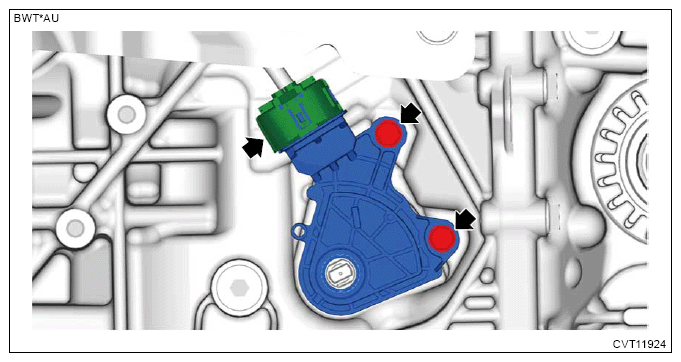

  5. Disconnect the connector and remove the inhibitor switch.
G13603164Courtesy of SUBARU OF AMERICA, INC.
