Reduction Drive Gear: Installation

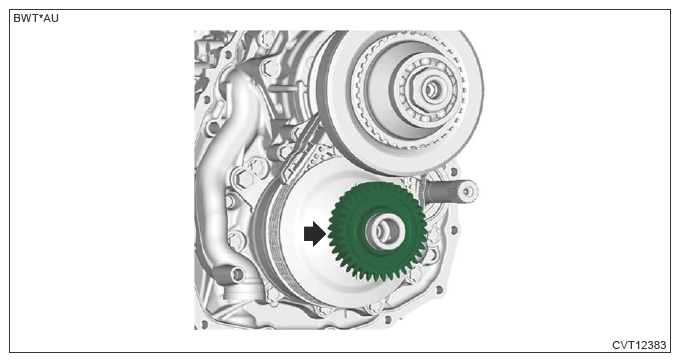

  1. Install the reduction drive gear.
    G13936195Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION CASE>INSTALLATION .
