Secondary Pressure Sensor: Removal

CAUTION:

Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
If water or oil contacts the connector terminal of secondary pressure sensor, replace it with a new part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

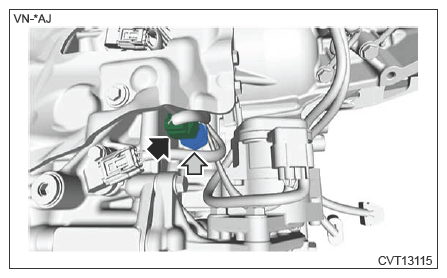

Disconnect the connector and remove the secondary pressure sensor.
CAUTION: Prepare the container for draining of CVTF.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the secondary pressure sensor.
