Transfer Driven Gear: Installation

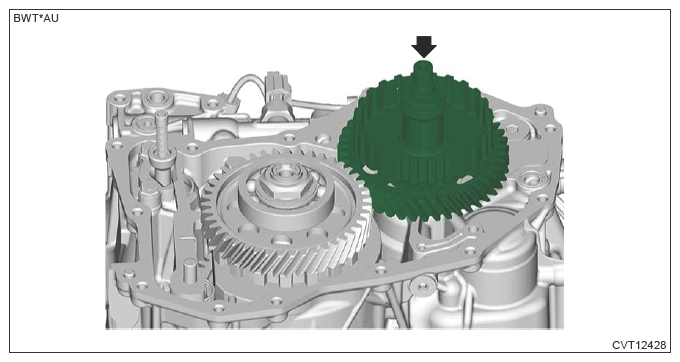

  1. Install the transfer driven gear.
    G13936110Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSFER CLUTCH>INSTALLATION .
